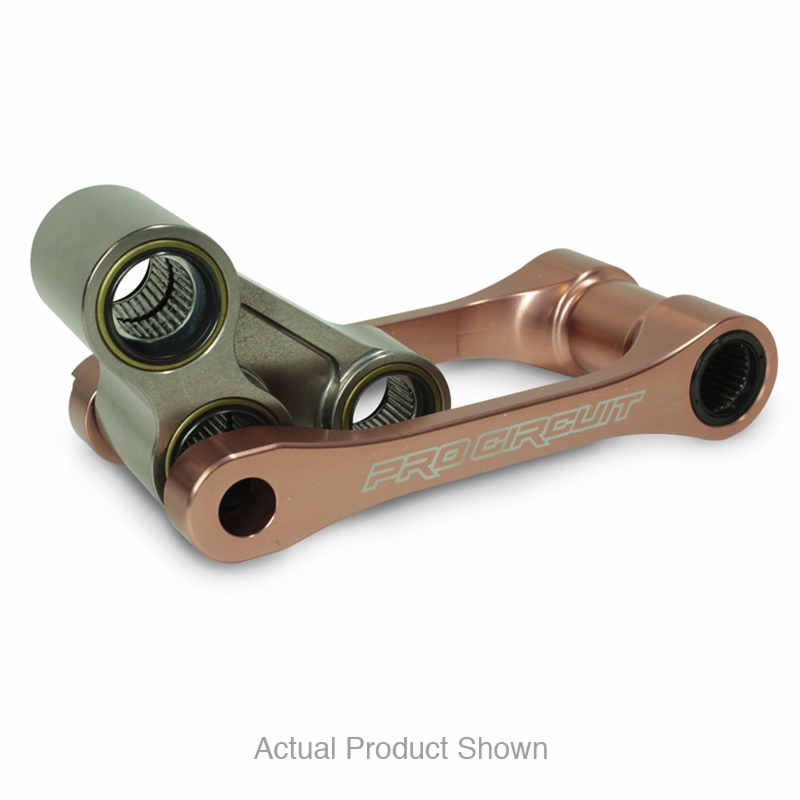

KTM/Husqvarna Linkage System

Fits The Following Bikes:

Husqvarna TC 125 2016-2020

Husqvarna TC 250 2017-2020

Husqvarna FC 250/350/450 2016-2020

KTM Factory Edition 250/450 SX-F 2015 1/2-2020

KTM 125 SX 2016-2020

KTM 250 SX 2017-2020

KTM 250/350/450 SX-F 2016-2020

KTM 250/350/450 XC-F 2016-2020

Only Fits The Following Bikes Without Seals: Call to Order and Ask Questions

Husqvarna TC 125 2021-2022

Husqvarna TC 250 2021-2022

Husqvarna FC 250/350/450 2021-2022

KTM 125 SX 2021-2022

KTM 250 SX 2021-2022

KTM 250/350/450 SX-F 2021-2022

KTM 250/350/450 XC-F 2021-2022

Linkage Description:

True to the Pro Circuit name, the new Pro Circuit linkage system for your new model KTM or Husqvarna brings the bike's handling performance to an entirely new level. The 2016 1/2 Factory Edition and 2016-2020 models come equipped with a redesigned OEM linkage system that causes the bike to have a feeling that is much too harsh and stagnant, whereas the preceding bike models had an OEM linkage system providing an unwanted lazy and soft feeling. Both of these OEM designs made it difficult to reach optimal handling performance and forced the use of shock springs on both extremes of the spectrum in order to compensate. The new Pro Circuit linkage system utilizes some of the mechanical advantages of both designs, along with additional Pro Circuit research and testing, to allow for the use of a more true-to-weight spring rate and to reach the ultimate sweet spot in handling for your new model KTM or Husqvarna.

Pro Circuit Length is 149.2 mm

Note: An increase in spring rate is required. Usually a 4 rate increase is recommended. (Rate example: 4.6 goes to 5.0)
